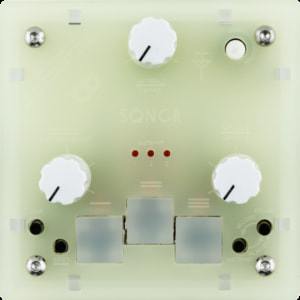

Sqncr

Extra Control for Trinity Instruments

Discontinued

TRINITY DRUM POLY MONO FM XOR MOZZI DK MIDI BASTL

Features

  • controls up to 3 different Trinity instruments (polyphonic or monophonic)
  • sending MIDI notes on 3 channels
  • 32 steps / pattern
  • 4 patterns for each instrument per preset
  • 3 presets
  • recording from buttons or MIDI
  • erase single notes or clear whole pattern
  • adjustable pattern length, groove, tempo
  • tap tempo
  • jump function (step repeater)
  • auto quantize
  • MIDI clock support, master or slave (by receiving MIDI clock message it turns into slave mode)
  • MIDI by side connectors – MIDI connector by connecting MIDI Bastl by the side

See Trinity page for more information

Technical details

  • dimensions: 75 x 75 x 55 mm
  • powered by 9V battery, 9V DC center positive power supply or side pins
  • user manual pdf
  • latest source code at gitHub in the examples folder of the bastlTrinity repository
  • MIDI implementation table
  • assembly instructions instructable pdf
